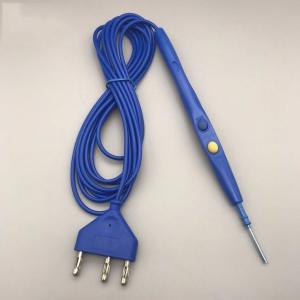

Disposable Electrosurgical Hand Control Pencil Blade Shape
Electrosurgical Pencil is designed in streamlined shape with lightness character. The pencil has the functions of cut and coagulation, and has the modes of button switch, rocker switch and foot switch control. The functions and modes are distinguished by different colors. The seal up design endues the inside circuit board with excellent waterproof property. Ergonomics lightweight design, strong material and humanized skid pro of design make the operator more comfortable during operation. It will give full scope to perfect function of the pencil to use together with various stainless steel electrodes, Non-stick coating electrodes and tungsten filament electrodes.
Description
Cable and connector
1. Teflon TCC high-frequency wire.
2. Standard length: 3M; Color: Blue.
Electrode
1. Stainless steel #303 material,length70mm.
2. High Precision Metalforming, good consistency.
3. With PP injection sleeve, standard color:yellow,Length: 29.22mm;
Circuit board
1. High-pressure resistant double-sided board;
2. double-way touch control;
Pencil warehouse ( with two buttons)
1. Medical grade ABS material.
2. Standard color in white or blue for pencil warehouse.
NOTE: color can be selected with MOQ 10000 sets.
What is cautery pencil?
Surgical cautery pens–also known as cautery pencils or simply as cauteries–are handheld medical devices used to stop bleeding via heat conducted through the tip. ... There are several common procedures that offer positive patient outcomes when a cautery pen is used
What is a cautery machine?
Cautery Machine. By using thermal cautery, Cautery machine achieves hemostasis and tissue destruction by passing direct or alternating current through a resistant metal wire. The heat conduction from the metal probe stops blood vessels from bleeding.
Where should a grounding pad be placed?
To reduce the risk of this complication, grounding pads should ideally be positioned over dry, shaven and well-vascularized tissue surfaces, to maximize the contact area of the return electrode and reduce the heat of the underlying tissues
